#R8 -
4 300 MM

CREW

2-4

fresh water tank volume

230 L

Grey water

140 L

( LAYOUT FEATURES )

Dining area transformable into lying surface
Rear double bed
Corner kitchen
Optimized storage space

( MODULE BODY )

Core
Features

This module is built for reliability and comfort, featuring premium materials, smart insulation, and thoughtfully integrated access and lighting solutions. Everything is designed to support long-term expedition travel in any environment.

( MODULE BODY )

Length: 4 300 mm
Width: 2 480 mm
Height: 2 130 mm


Basic structure:

• Seating area for 2–4 people and plenty of storage space
• Cabin walls and ceiling: 60 mm GRP Xtrem laminate with 70% glass fiber content
• Base plate 80 mm

( LIVING MODULE )

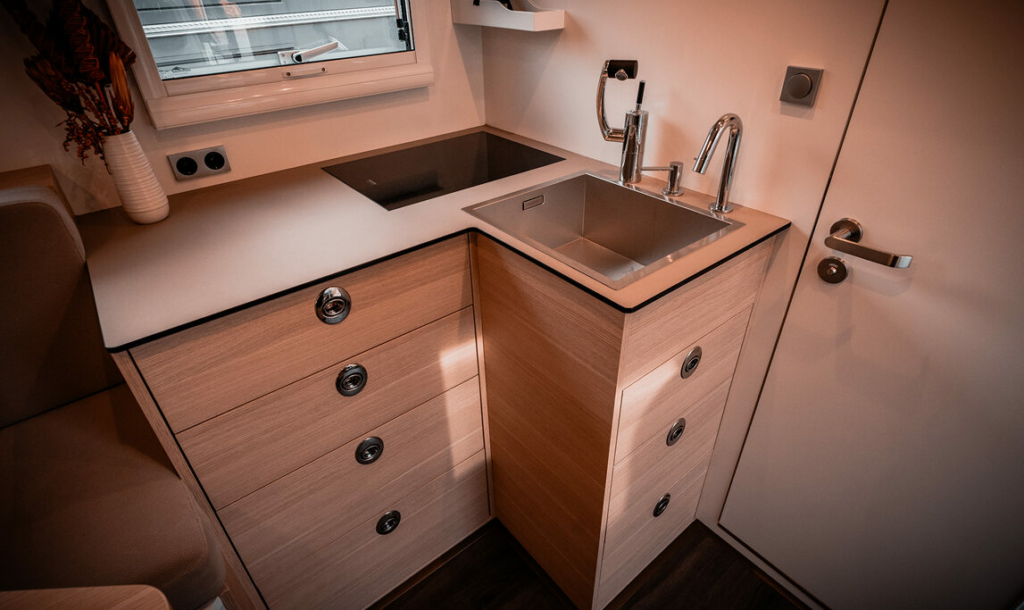

Corner kitchen

Equipped with MIELE induction hob featuring 2 cooking zones for precise and efficient meal preparation

SEAGULL water filter system

Advanced purification with activated carbon filter, UV-LED treatment, and a separate tap for safe drinking water

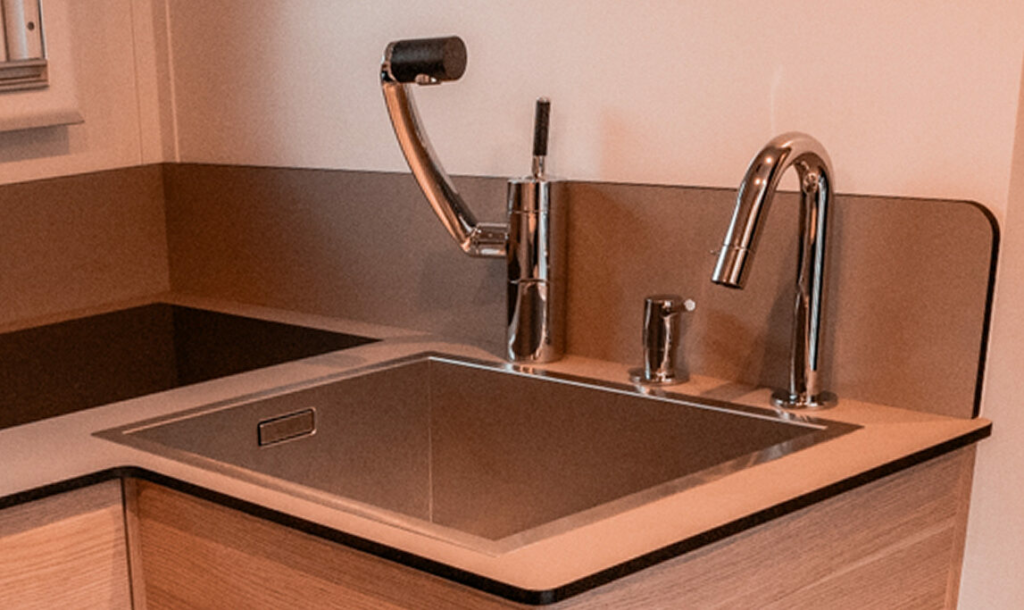

Blanco stainless steel sink

Durable, easy-to-clean sink for everyday kitchen tasks

Vitrifrigo Slim 150 refrigerator

Compact yet spacious fridge-freezer combination ideal for expedition use

Seating area for 2–4 people

Comfortable space to relax, socialize, or enjoy the view during your journey.

Dining area transformable into a lying surface (200 cm × 100 cm)

Transforms easily into a sleeping area, maximizing functionality in a compact space.

Main bed in the rear (200 cm × 140 cm)

Spacious and comfortable double bed positioned for maximum privacy and rest.

Dining area convertible into a lying surface (200 cm × 100 cm)

Transforms easily into a sleeping area, maximizing functionality in a compact space.

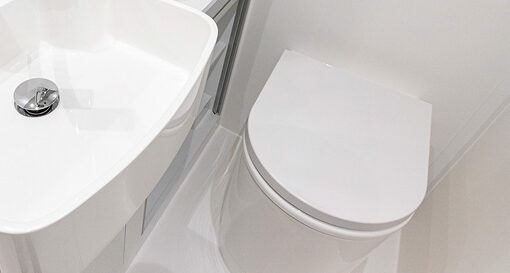

Waterless Separett Tiny dry separation toilet

Eco-friendly toilet system with a 7.5 L urine tank for clean, maintenance-friendly operation.

Built-in GRP sink with single-handle faucet

Durable and seamless sink unit offering easy temperature and water flow control.

Soap dispenser, cabinet, and mirror

Essential bathroom features combined for practicality and organized storage.

Shower with concealed underfloor tray

Fully integrated shower system with a hidden tray for a modern, space-saving design.

( chassis )

MB ATEGO 1023 A,
S-cab

  • 170 kW (231 HP)

  • Mileage: 500 km

  • Power: 170 kW (231 HP)

  • Fuel type: Diesel

  • Wheelbase: 3260 mm

  • Transmission: Automatic (PowerShift 3 Offroad)

  • Driver's cab: 3 registered seats

  • Engine: 5.1 l, 170 kW (231 HP), 900 Nm

  • Emission class: EURO6D

  • Fuel tank: 200 liters

( Off-road FEATURES )

Permanent all-wheel drive with three locks
Differential lock on front axle, rear axle and center differential
ABS, switchable
Cruise control
Central locking system
Air-suspended comfort seats with heating and cooling functions
Middle seat in the driver's cab

( Technologies and EQUIPMENT )

• Main water pumps
• External shower outlet on the right side of the module
• Electric drain valves for gray water tank
• Main water tank volume: 230 L
• Gray water tank volume: 140 L

• 300 Ah/24 V lithium-ion battery bank, expandable to 900 Ah
• 5000 VA inverter/charger
• 800 Wp solar panels
• 50A DC-DC converter for charging batteries via the engine alternator
• Color control monitor and ability to remotely monitor the system

• Powerful diesel heater
• Up to 6 kW heating output
• Digital control panel for precise and continuous control of the interior and water temperature

• Recessed ceiling lights and dimmable LED strips under the cabinet
• Dimmable reading lights in the sleeping and dining areas
• 4x230V and 3xUSB charging ports

• 2x highly effective roof fans
• Air inlet and outlet modes
• Remote controlled
• Automatic closing triggered by rain sensors

• SEAGULL drinking water filtering with activated carbon filter, UV-LED aftertreatment and separate tap
• Rearview camera
