#278 BOX ONLY -
7 160 MM

CREW

-

fresh water tank volume

400 L

additional fresh water

230 L

OPTIONAL

Grey water

205 L

( LAYOUT FEATURES )

Dedicated kids’ room with 3 foldaway beds
Rear double bed (150 × 200 cm)
Seating for 6 with convertible dinette
L-shaped kitchen with Miele appliances
Heated rear garage with slide-out bike rack
Bathroom with shower and glass partition

( MODULE BODY )

Core
Features

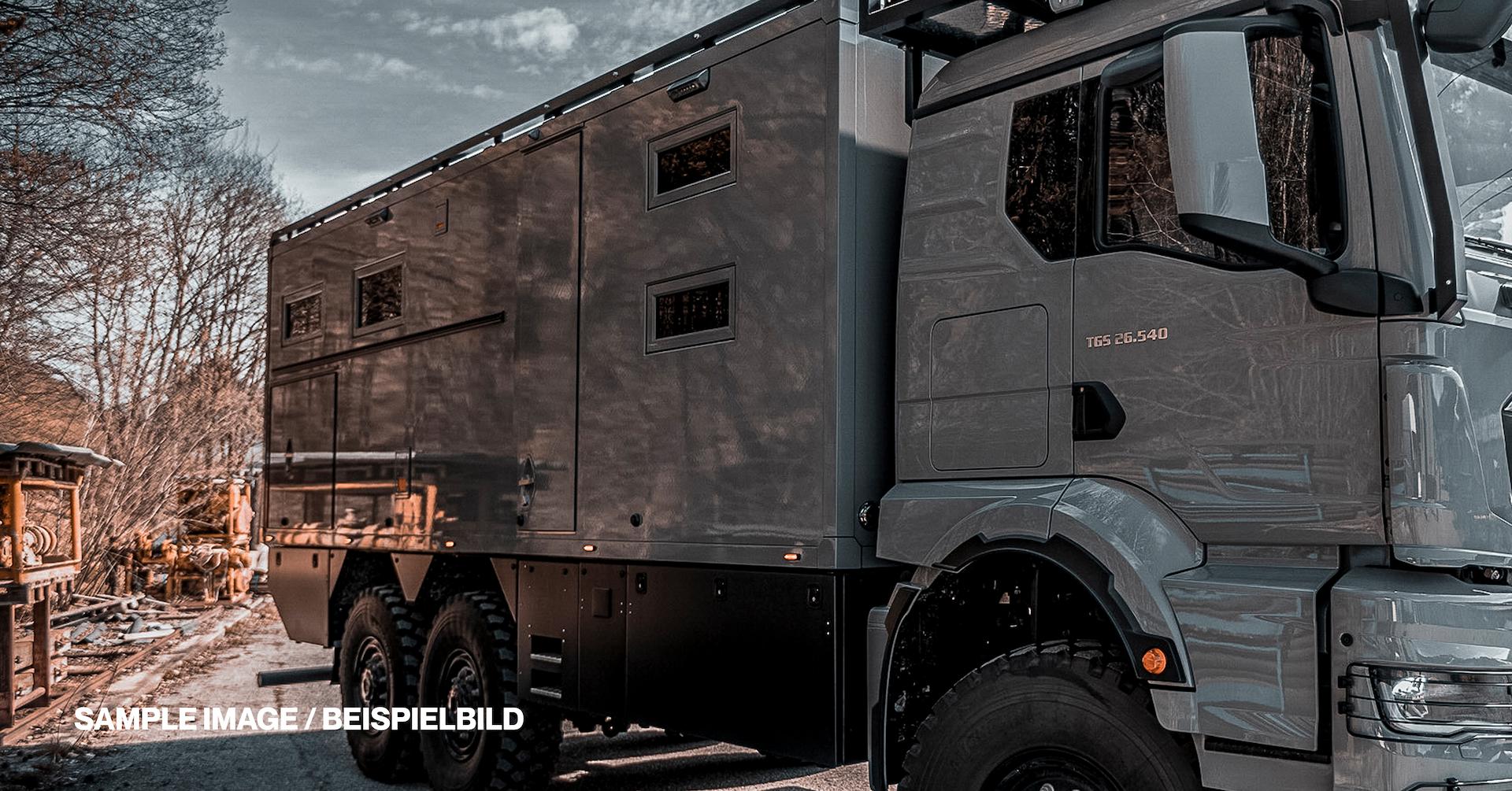

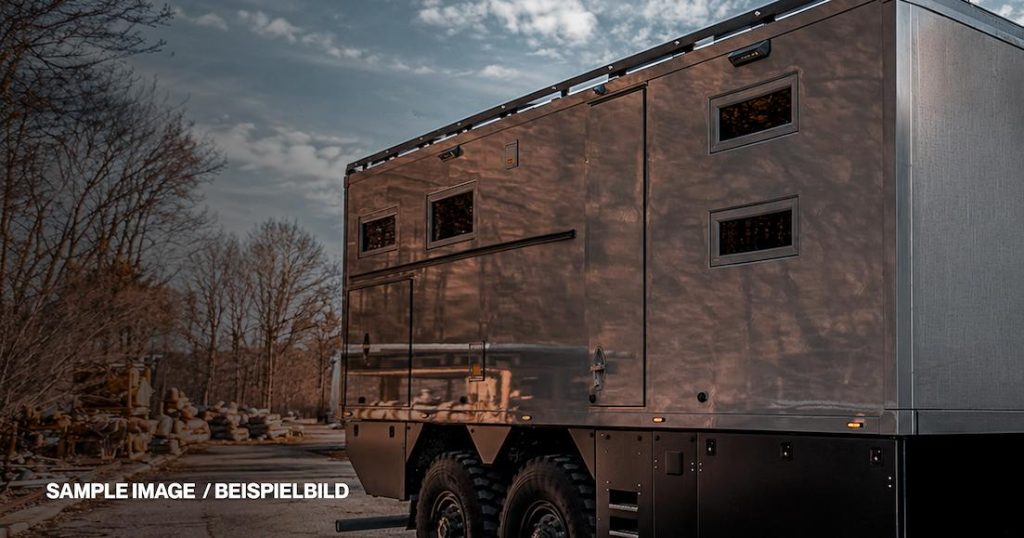

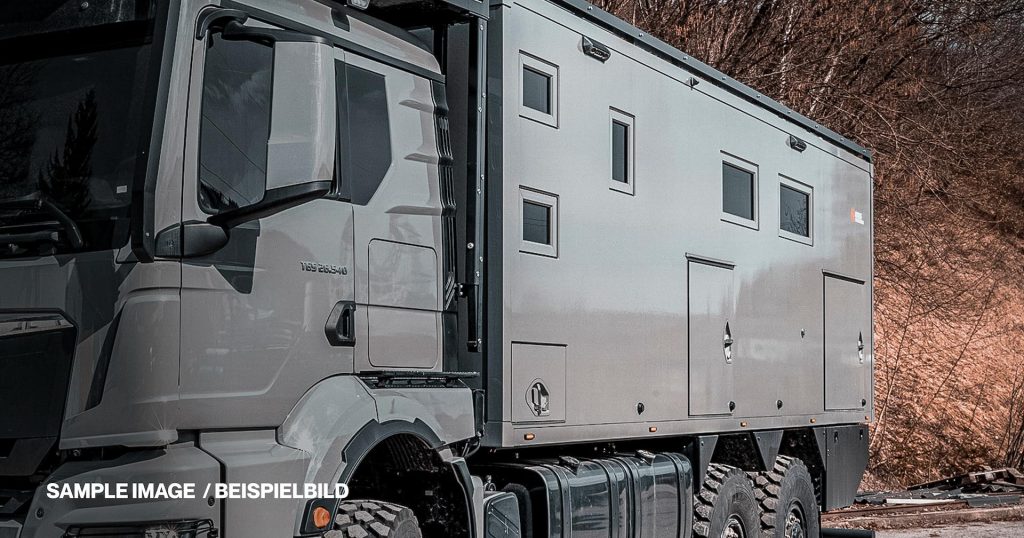

Designed for family expeditions, the 7.16-metre living module combines robust GRP construction with a dedicated kids’ room, a rear double bed and a dining area for six. An L-shaped kitchen with Miele appliances, underfloor heating and a heated rear garage bring everyday comfort to extended journeys.

More details

( MODULE BODY )

( LIVING MODULE )

MIELE induction hob

Two-zone MIELE induction hob integrated into the L-shaped kitchen, providing a convenient cooking area for preparing everyday meals throughout family trips and extended journeys.

MIELE combination oven

Integrated MIELE oven with microwave function, offering flexible options for baking, reheating and preparing a variety of meals during family trips and extended journeys.

MIELE fridge-freezer

MIELE fridge-freezer with a 212-litre fridge and a 54-litre freezer, providing generous storage for fresh ingredients, drinks and frozen supplies during extended family journeys.

SEAGULL water filter

SEAGULL drinking water filtration with an activated carbon filter, UV-LED treatment and a separate tap, providing convenient access to filtered water for drinking and cooking.

BLANCO steel sink

BLANCO stainless steel sink integrated into the L-shaped kitchen, providing a practical washing area for preparing ingredients and cleaning dishes after everyday family meals.

Dishwasher

An integrated dishwasher makes cleaning up after family meals more convenient, reducing daily chores and leaving more time to relax and enjoy the journey.

NESPRESSO coffee machine

A NESPRESSO coffee machine brings a familiar morning ritual to life on the road, making coffee preparation a convenient part of your daily travel routine.

Seating for six

A dining area with seating for six and a slide-out table creates a shared space for family meals, conversation and everyday life on the road.

Convertible dinette

The main dinette converts into a 140 × 200 cm bed, allowing the dining area to serve as additional sleeping space whenever it is needed.

Leather upholstery

Leather upholstery gives the dinette a refined finish, creating an inviting seating area for shared meals, relaxed evenings and time together throughout the journey.

Dimmable lighting

Dimmable reading lights and LED strips allow the lighting to be adjusted for meals, reading or relaxed evenings, creating a comfortable atmosphere in the dining area.

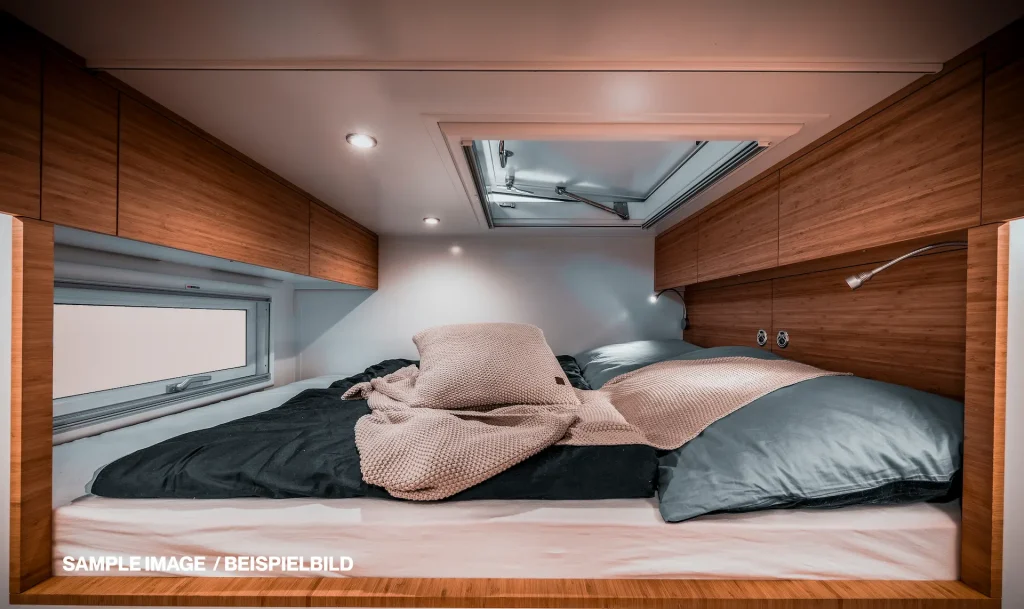

Rear double bed

A dedicated 150 × 200 cm double bed at the rear of the module provides a permanent sleeping space without converting the main dining area.

Kids’ foldaway beds

Three foldaway single beds in the dedicated kids’ room measure 70 cm wide and 190 or 200 cm long, providing individual sleeping spaces for children.

Extra double bed

The main dining area transforms into a 140 × 200 cm double bed, adding a flexible sleeping option alongside the permanent rear bed and kids’ room.

Kids’ convertible dinette

The dinette in the kids’ room converts into a 70 × 190 cm single bed, allowing the same space to accommodate both seating and sleeping.

Macerator toilet

An integrated macerator toilet offers the choice of flushing with grey or fresh water, helping manage fresh water reserves during family trips and extended journeys.

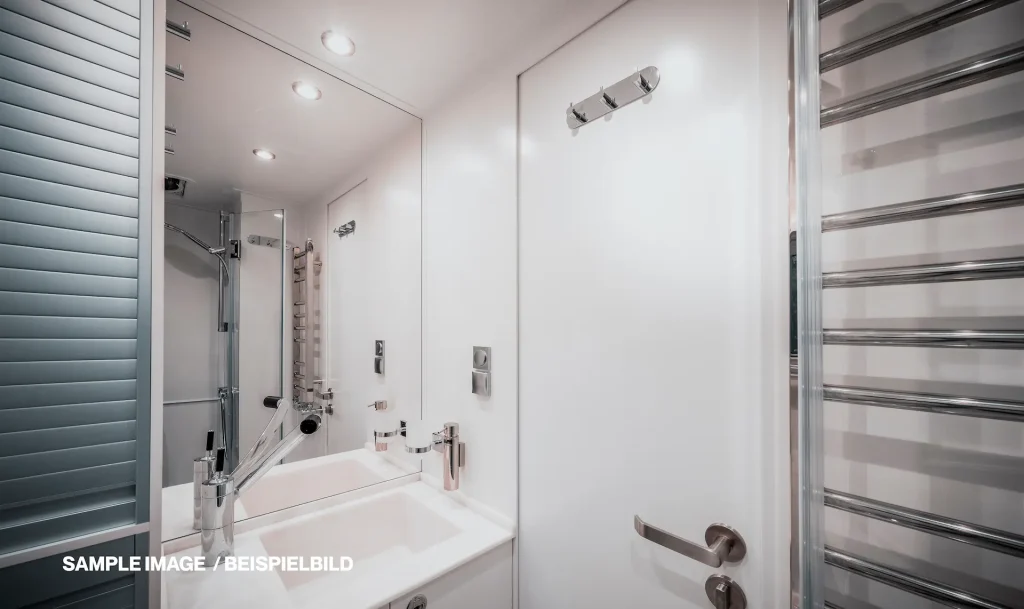

CORIAN washbasin

A built-in CORIAN washbasin with a single-handle mixer tap provides a practical washing area, bringing a clean, coordinated finish to the bathroom’s everyday essentials.

Bathroom storage

A dedicated bathroom cabinet keeps toiletries and daily essentials organised, while a mirror and soap dispenser complete the washbasin area for convenient everyday use.

Glass shower partition

A shower with a concealed underfloor tray and glass partition creates a defined showering area, bringing the convenience of a dedicated shower to extended journeys.

Ventilation and flooring

An exhaust fan helps remove moisture from the bathroom, while robust HPL flooring provides a durable surface suited to everyday use throughout extended family journeys.

( SPECIFICATIONS )

#278 Living Module

  • BOX ONLY — CHASSIS NOT INCLUDED

  • Module length: 7,160 mm

  • Module width: 2,500 mm

  • Module height: 2,196 mm

  • Wall and ceiling thickness: 60 mm

  • Floor panel thickness: 80 mm

  • Construction: GRP Xtrem laminate

  • Dining capacity: 6 people

  • Rear double bed: 150 × 200 cm

  • Fresh water capacity: 400 + 230 L

  • Battery bank: 1,080 Ah / 24 V

( EQUIPMENT HIGHLIGHTS )

Wood veneer furniture finishes
Leather upholstery in the dinette
Electric fold-out scissor staircase
Airline rails on both sides of the module
Two shelves in the rear garage
Roof-mounted branch guard
Service access to the washing machine and water filter
Crockery and cutlery set

( Technologies and EQUIPMENT )

• Seagull drinking water filtration with activated carbon filter, UV-LED treatment and a separate tap
• Fresh water filling unit with 3 pre-filter stages and UV lamp
• Submersible fresh water pump
• 2 redundant main water pumps
• 2 external shower outlets, one on each side of the module
• Electric drain valves for grey and black water tanks
• Waste drainage camera
• Fresh water tank capacity: 400 L + 230 L (630 L total)
• Black water tank capacity: 205 L
• Grey water tank capacity: 205 L

• 1080 Ah / 24 V lithium-ion battery bank
• 2 × 5000 VA inverter/chargers
• 2000 Wp solar panels
• 50 A DC/DC converter for charging via the engine alternator
• Victron Buck-Boost
• Colour control monitor with remote system monitoring
• International battery charger, 90–265 V

• 2 × Webasto Liquid 5 kW diesel heaters, one with a high-altitude kit
• Additional air heater as a backup system
• Underfloor heating and radiators throughout the living cabin
• Heated garage

• Recessed ceiling lights and dimmable LED strips
• Dimmable reading lights in the sleeping and dining areas
• 6 × 230 V sockets
• 4 × USB sockets
• 230 V shore power connection with a 32 A connector and charging cable
• 230 V sockets on the left and right sides of the garage
• LED marker lights and exterior lighting

• Remote-controlled roof fans with air intake and exhaust modes and automatic rain-sensor closing
• Bayernluft ventilation system
• 2 roof-mounted air conditioning units

• Rear-view camera
• 360° Camos camera system with a second monitor in the living cabin
• Electric fold-out scissor staircase
• Roof rack
• Branch guard on the module roof
• Stainless steel outdoor kitchen with ceramic hob and electric grill
• Washing machine with dryer function
• Preparation for Starlink
• Underfloor storage compartments
• Engel cooling box installed in a storage compartment
• Grey and black water tanks installed in the subframe
• Starter batteries housed in a separate compartment in the living cabin
• Additional service hatches for access to the washing machine and water filter
• Slide-out bike rack in the rear garage
• Toilet flushing using grey or fresh water
• Airline rails on both sides of the module
• 2 shelves in the rear garage
• Wood veneer furniture surfaces
• Leather upholstery in the dinette
• Smart TV with TV lift
• Crockery and cutlery set
