4300 MM -
PROJECT RHINO

CREW

2

fresh water tank volume

230 L

Grey water

140 L

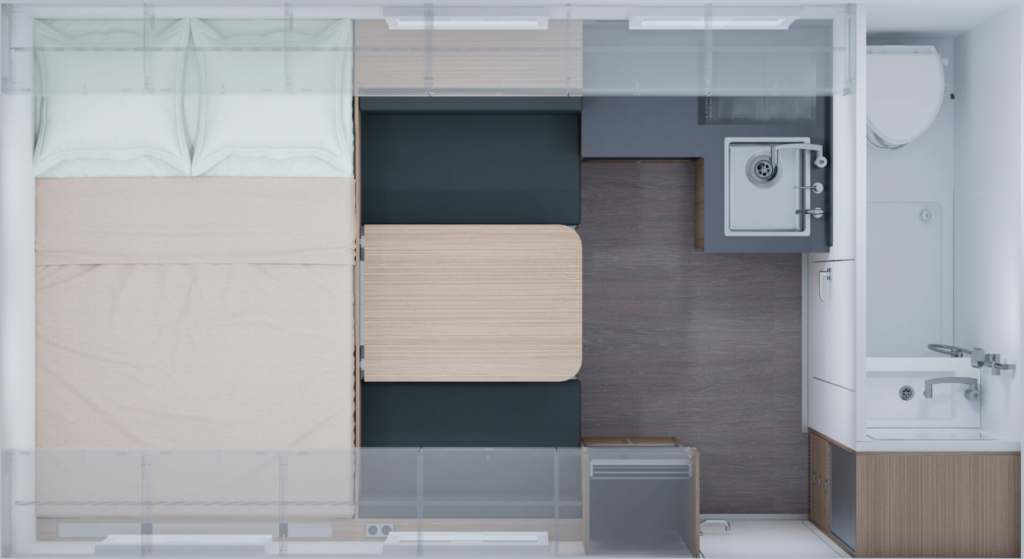

( LAYOUT FEATURES )

Fixed double bed
Induction hob with 2 cooking zones
300 Ah lithium-ion battery (expandable to 600 Ah or 900 Ah)
Dry toilet and shower

( MODULE BODY )

Core
Features

This module is built for reliability and comfort, featuring premium materials, smart insulation, and thoughtfully integrated access and lighting solutions. Everything is designed to support long-term expedition travel in any environment.

( MODULE BODY )

Length: 4 300 mm
Width: 2 480 mm
Height: 2 130 mm


Basic structure:

· Interior walls and doors according to layout specifications
· Full interior and exterior paintwork in your selected color
· GRP entrance door (wall thickness) with 3-point locking system and integrated rain gutter
· Sliding insect screen at entrance door
· Foldable, double-insulated safety glass windows with sun protection coating (sizes per plan)
· Integrated insect, sun, and blackout blinds on all windows
· Two exterior access hatches to rear garage with locking system and rain gutters
· Roof hatch (approx. 500×700 mm) made of insulated sandwich panels with insect screen and warning buzzer
· Rear and side marker lights
· High-performance LED scene lighting (right and rear of cabin)

( LIVING MODULE )

L-shaped kitchen with HPL worktop

Durable HPL countertop paired with a stainless steel sink, featuring an efficient induction cooker with two cooking zones. Optionally available with a matching dish and cutlery set for a complete kitchen setup.

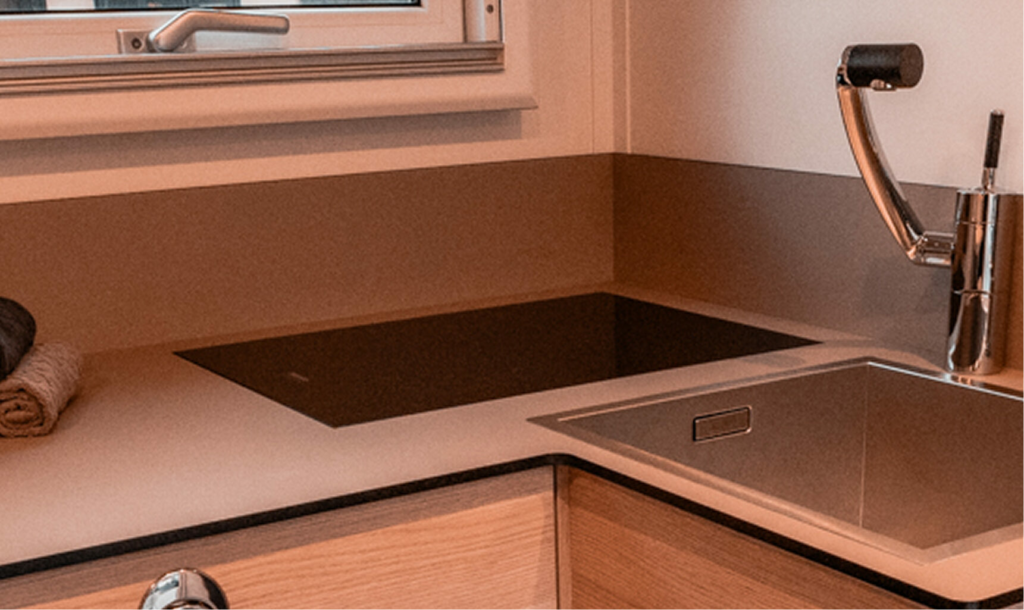

MIELE induction hob with 2 cooking zones

This induction cooker makes cooking fun with intuitive SmartSelect selection and seamless integration. Power levels and cooking times can be set individually per zone, with PowerFlex and TwinBooster functions integrated.

Blanco stainless steel sink

A refined fusion of durability and design — this premium stainless steel sink offers exceptional functionality, timeless aesthetics, and enduring quality, making it a centerpiece of both form and practicality in the living module.

Vitrifrigo Slim 150 fridge-freezer combination

This special countertop decor boasts a low light reflectivity, extremely matte surface, a soft touch, anti-fingerpting characteristics and thermal healing of superficial micro scratches.

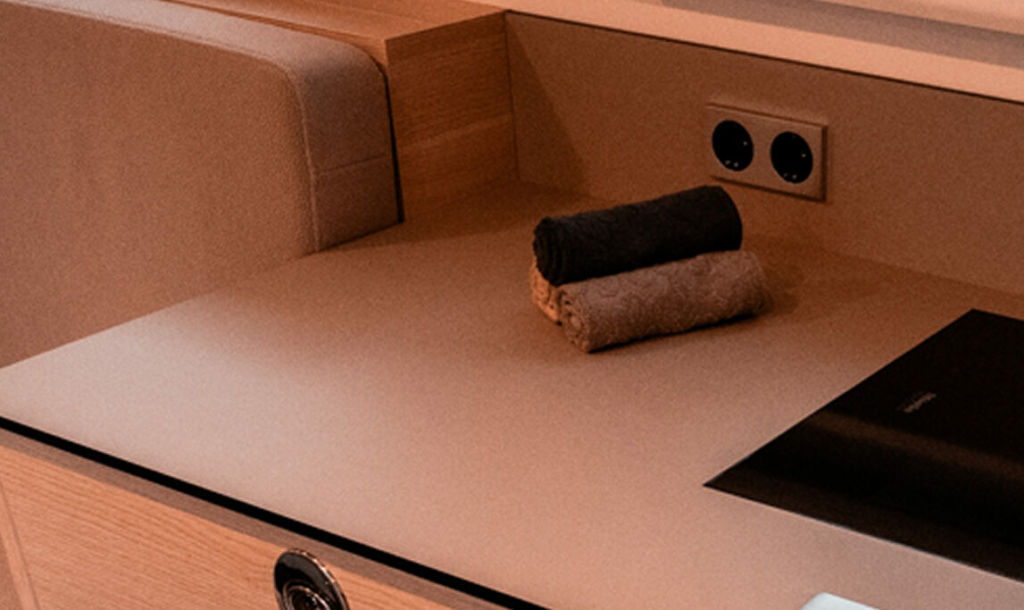

ULTRA-MATTE COUNTERTOP FINISH

This special countertop decor boasts a low light reflectivity, extremely matte surface, a soft touch, anti-fingerpting characteristics and thermal healing of superficial micro scratches.

Seating area for 2–3 people

A cozy and inviting space designed for relaxation, meaningful conversations, or simply enjoying the surrounding views — whether you’re on the road or parked in a scenic spot.

Dining area convertible into a lying surface (200 cm × 100 cm)

Effortlessly converts into a comfortable sleeping area, making the most of every inch and ensuring maximum functionality within a compact layout.

Premium Upholstery

Crafted from high-quality fabric, the bench upholstery offers both durability and a refined touch of comfort for everyday use.

Harmonious Design

The tabletop features the same refined finish as the rest of the furniture, creating a cohesive and elegant look throughout the living space.

Main bed in the rear (200 cm × 140 cm)

Spacious and comfortable double bed designed to offer maximum privacy, restful sleep, and a peaceful retreat after a day of adventure.

Smart storage

The dining area features multiple built-in cupboards and hidden compartments — practical solutions for keeping essentials neatly organized and always within reach.

Dimmable reading lights

Soft, adjustable lighting creates a warm and inviting atmosphere while offering perfect illumination for reading and relaxing at night.

Waterless Separett Tiny dry separation toilet

Eco-friendly toilet system with a 7.5 L urine tank for clean, maintenance-friendly operation.

Built-in GRP sink with single-handle faucet

Durable and seamless sink unit offering easy temperature and water flow control.

Soap dispenser, cabinet, and mirror

Essential bathroom features combined for practicality and organized storage.

Shower with concealed underfloor tray

Fully integrated shower system with a hidden tray for a modern, space-saving design.

( take a 3d tour )

( chassis )

MB ATEGO 1023 A,
S-cab

  • 3 260 mm

  • 231 HP / 170 kW

  • 3 CREW SIZE

  • Wheelbase: : 3260 mm

  • Transmission: Automatic PowerShift Offroad

  • Driver's cab: : 3 registered seats

  • Engine:: 5.1 l, 170 kW (231 HP), 900 Nm

  • Emission class: EURO6D

  • Fuel tank:: 200 liters

( Off-road FEATURES )

Permanent all-wheel drive with three locks
Differential lock on front axle, rear axle and center differential
ABS, switchable
Cruise control
Central locking system
Middle seat in the driver's cab
Air-suspended comfort seats with heating and cooling functions

( Technologies and EQUIPMENT )

• Main water pumps
• External shower outlet on the right side of the module
• Electric drain valves for gray water tank
• Main water tank: 230 L
• Gray water tank: 140 L

• 300 Ah / 24 V lithium-ion battery bank, expandable to 600 or 900 Ah
• 5000 VA inverter / charger
• 800 Wp solar panels
• 50 A DC-DC converter for charging batteries via the engine alternator
• Color control monitor with remote monitoring capability

• Dimmable LED recessed ceiling lights, app-controlled and section-switchable
• Dimmable LED light strips under upper cabinets, separately switchable
• Dimmable reading lights in sleeping and dining areas
• 6 x 230V sockets
• 4 x USB charging ports

Scheer Nano diesel-powered liquid heater:
• 7 kW heating output
• Hybrid function – diesel/electric operation with up to 3 kW output
• Automatic altitude adjustment for optimal performance at various elevations
• Blue burner technology – high efficiency and environmentally friendly
• Pressure-resistant stainless steel boiler
• Preheating capability – utilizes engine heat to preheat the drive section



Heating components:
– Underfloor heating in the living area
– Radiator in the dinette
– Radiator in the bedroom
– Towel radiator in the bathroom
– Radiator in the garage

• 2 highly effective Maxxair roof ventilators in the living area and bathroom
• Air inlet and outlet mode
• Remote controlled
• Air conditioning function
• Rain sensor – closes automatically when it rains
• Additional insulating hood developed in-house prevents condensation in cold temperatures



Bayernluft System:
A Bayernluft Comfort ventilation unit with heat recovery and humidity control is installed in the module.
This system ensures ideal interior humidity and eliminates the risk of condensation or mold.

• Roof rack
• TV lift system (without television)
• Air conditioning for the living cabin
• Fresh water filling unit with 3 pre-filter levels and UV lamp
• Rear carrier for a spare wheel
• Tire pressure control system
