5650 MM -
RHINO XL FAMILY 200

CREW

4

fresh water tank volume

545 L

Grey water

285 L

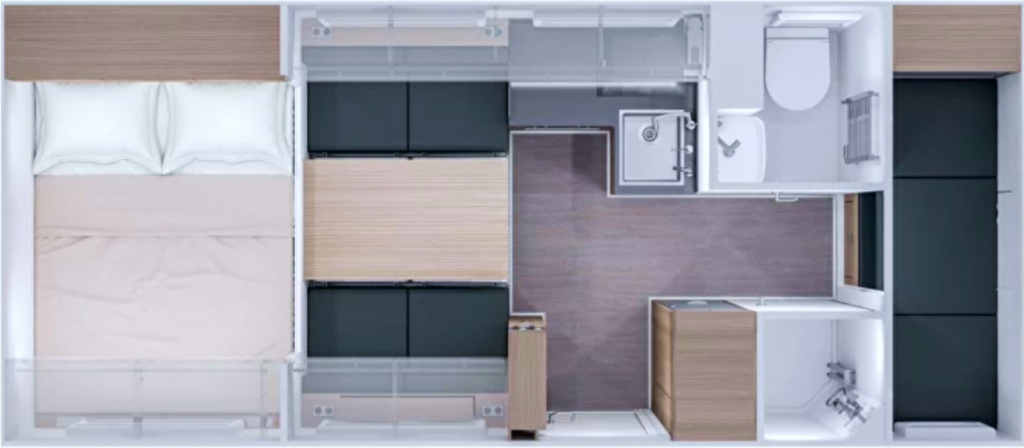

( LAYOUT FEATURES )

Permanent double bed
2 bunk beds, 200 cm long
Induction hob by Miele with two cooking zones
600 Ah lithium-ion battery (expandable to 900 Ah)
Separate shower and toilet

( MODULE BODY )

Core
Features

This module is built for reliability and comfort, featuring premium materials, smart insulation, and thoughtfully integrated access and lighting solutions. Everything is designed to support long-term expedition travel in any environment.

( MODULE BODY )

Length: 5650 mm
Width: 2500 mm
Height: 2130 mm

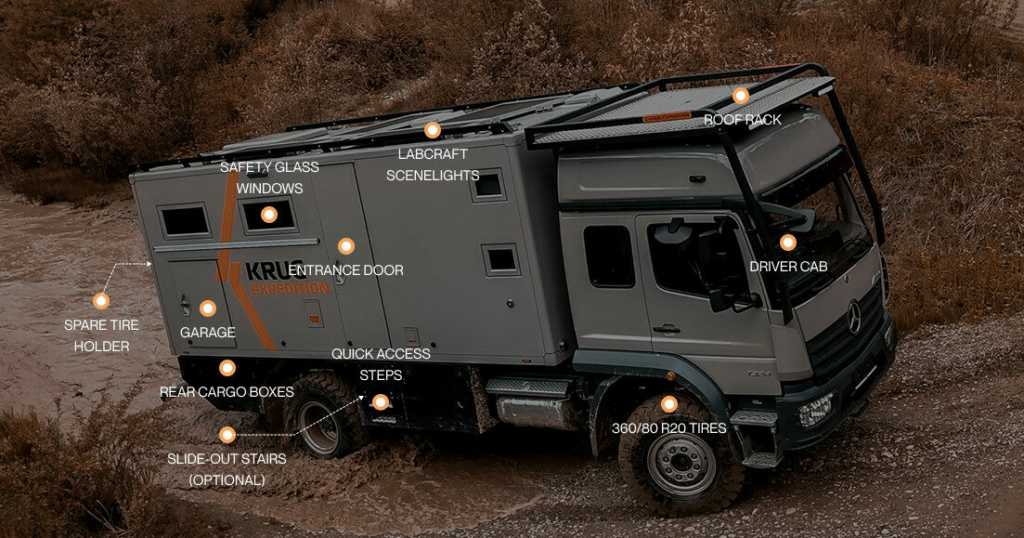

Basic structure:

• Interior walls and doors according to layout specifications
• Full interior and exterior paintwork in your selected color
• GRP entrance door (wall thickness) with 3-point locking system and integrated rain gutter
• Sliding insect screen at entrance door
• Foldable, double-insulated safety glass windows with sun protection coating (sizes per plan)
• Integrated insect, sun, and blackout blinds on all windows
• Two exterior access hatches to rear garage with locking system and rain gutters
• Roof hatch (approx. 500×700 mm) made of insulated sandwich panels with insect screen and warning buzzer
• Rear and side marker lights
• High-performance LED scene lighting (right and rear of cabin)

( LIVING MODULE )

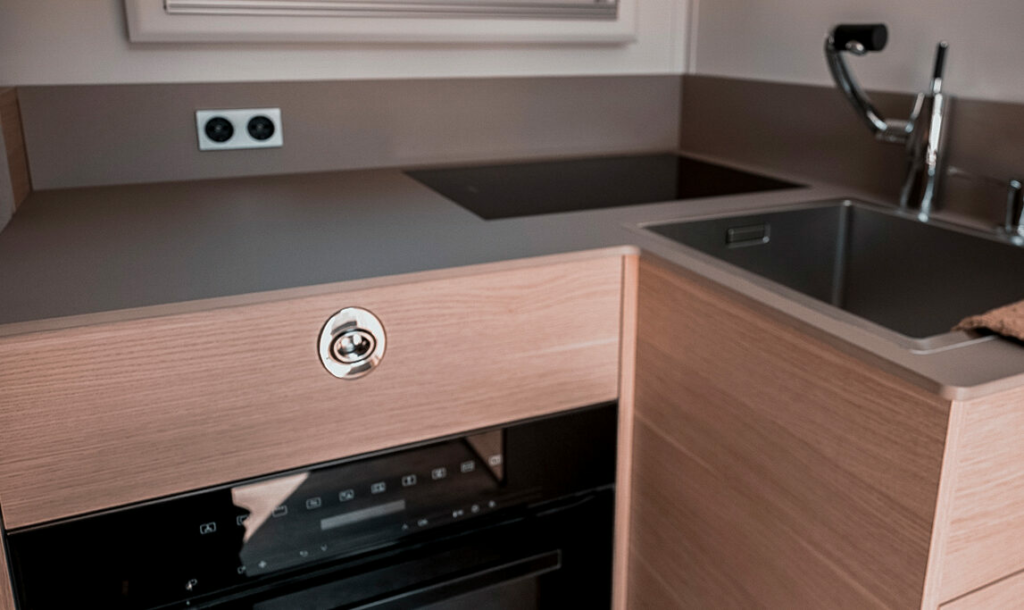

L-shaped kitchen with HPL worktop

Durable HPL countertop paired with a stainless steel sink, featuring an efficient induction cooker with two cooking zones. Optionally available with a matching dish and cutlery set for a complete kitchen setup.

MIELE induction hob with 2 cooking zones

This induction cooker makes cooking fun with intuitive SmartSelect selection and seamless integration. Power levels and cooking times can be set individually per zone, with PowerFlex and TwinBooster functions integrated.

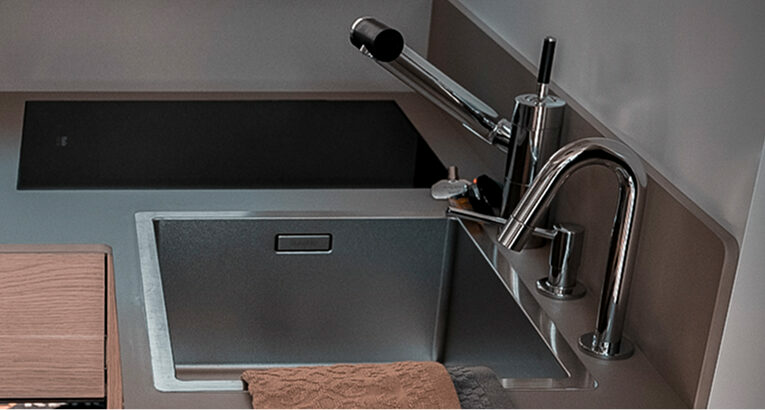

Blanco stainless steel sink

A refined fusion of durability and design — this premium stainless steel sink offers exceptional functionality, timeless aesthetics, and enduring quality, making it a centerpiece of both form and practicality in the living module.

MIELE oven with microwave function

Combining elegance and efficiency, the MIELE oven with microwave function offers versatile cooking in one compact appliance — perfect for everything from quick reheating to gourmet baking, all with signature MIELE precision.

Vitrifrigo Slim 150 fridge-freezer combination

Slim design with generous storage, offering separate cooling and freezing zones.

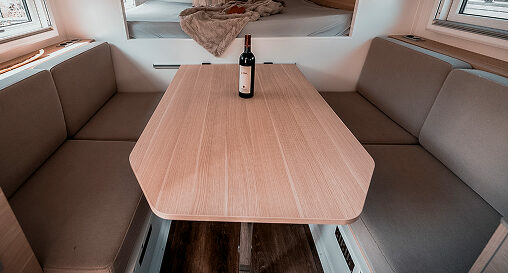

Seating area for 2–4 people

Comfortable seating for 2 to 4 people, ideal for shared meals, relaxed conversations, or simply enjoying the journey together.

Dining area convertible into a lying surface 200 × 120 cm

The tabletop features the same refined finish as the rest of the furniture, creating a cohesive and elegant look throughout the living space.

Premium Upholstery

Crafted from high-quality fabric, the bench upholstery offers both durability and a refined touch of comfort for everyday use.

Harmonious Design

The tabletop features the same refined finish as the rest of the furniture, creating a cohesive and elegant look throughout the living space.

Main bed in the rear, lying area 200 × 150 cm

Spacious double bed providing maximum comfort and restful sleep.

Cupboards

The dining area features multiple built-in cupboards and hidden compartments — practical solutions for keeping essentials neatly organized and always within reach.

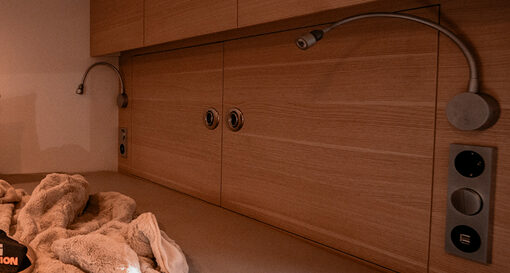

Dimmable reading lights

Soft, adjustable lighting creates a warm and inviting atmosphere while offering perfect illumination for reading and relaxing at night.

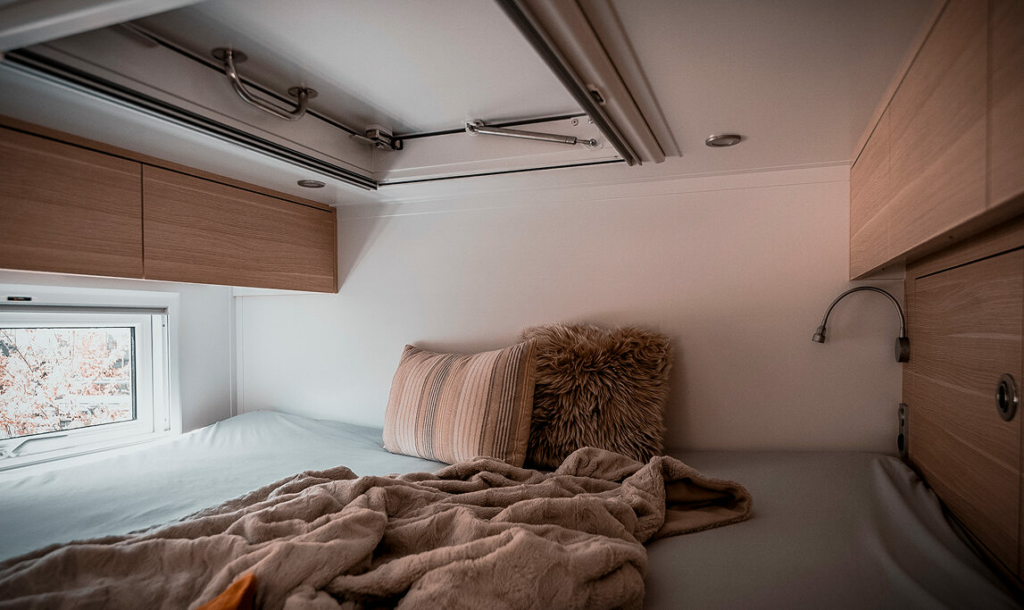

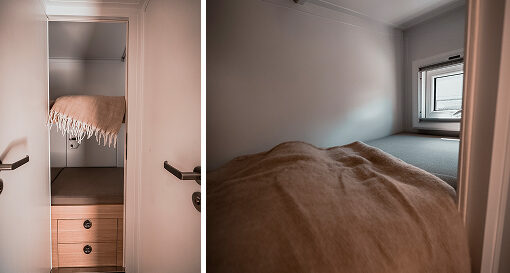

2 bunk beds, 200 × 70 cm

Two comfortable bunk beds measuring 200 × 70 cm each — a smart, space-saving solution ideal for children or additional guests.

Waterless Separett Tiny dry separation toilet

Eco-friendly toilet system with a 7.5 L urine tank for clean, maintenance-friendly operation.

Robust HPL flooring

Durable and easy to maintain, the robust HPL flooring offers excellent resistance to water, wear, and scratches — ensuring longevity with a refined look.

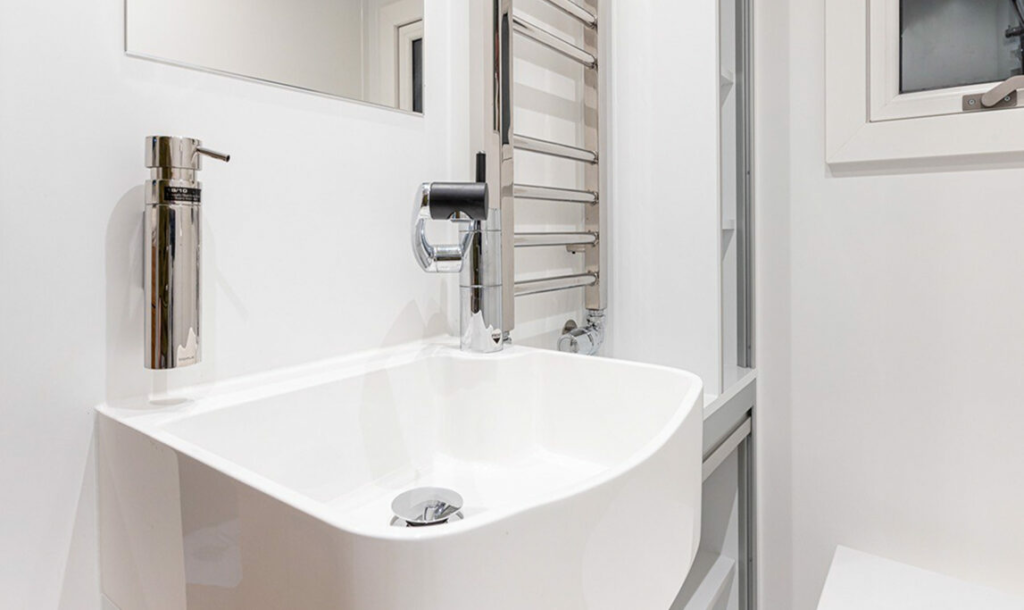

Integrated GFK Sink Unit

A sleek, built-in sink made from durable GFK, equipped with a single-handle faucet and an integrated soap dispenser — combining functionality with modern design.

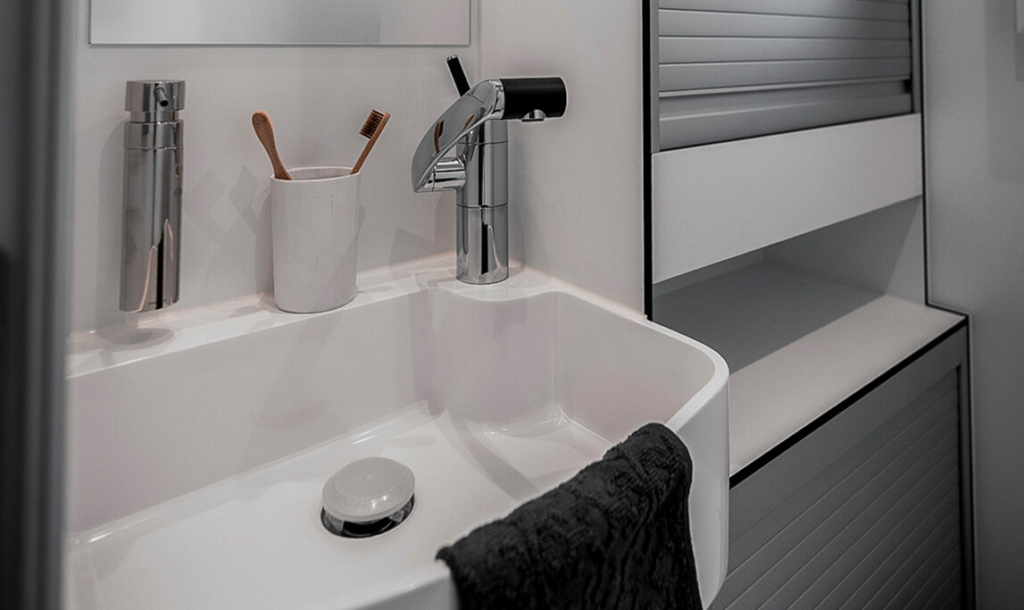

Soap dispenser, cabinet, and mirror

Essential bathroom features combined for practicality and organized storage.

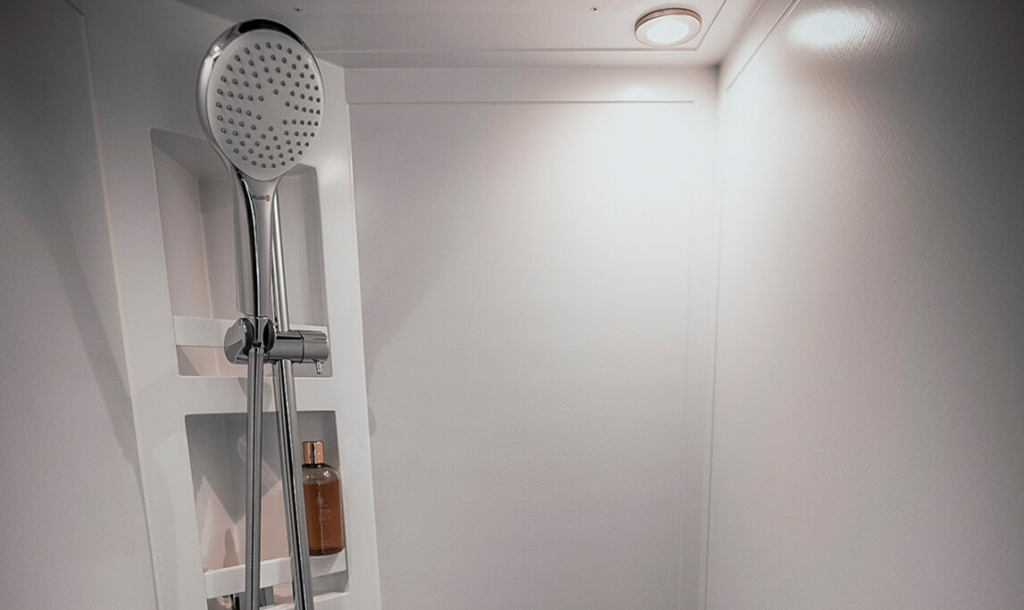

Shower with shower set and concealed underfloor shower tray

Elegant design with a hidden tray for seamless flooring and easy water drainage.

Exhaust fan

Ventilation system that prevents moisture buildup and keeps the air fresh.

( take a 3d tour )

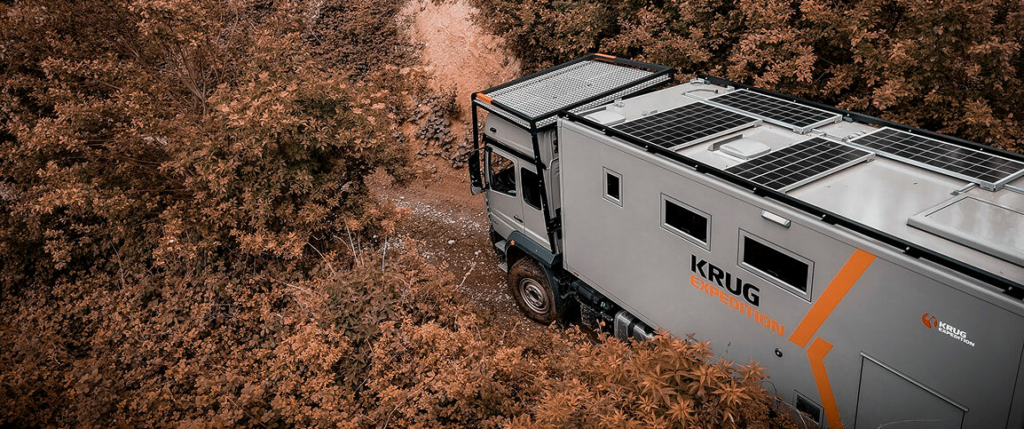

( chassis )

MB Atego 1324 A,
L- cab

  • 4460 mm

  • 6 CREW SIZE

  • Wheelbase: 4460 mm

  • Transmission: Automatic (PowerShift 3 Offroad)

  • Driver's cab: 6 registered seats

  • Engine: 7.7 l, 175 kW (238 HP), 1000 Nm

  • Emission class: EURO6D

  • Fuel tank: 300 liters

( Off-road FEATURES )

Permanent all-wheel drive with three locks
Differential lock on front axle, rear axle and center differential
ABS, switchable
Cruise control
Central locking system
Driver's seat with air suspension
Passenger seat folds down for easier access to rear seat.
Rear seat bench with 4 belt places
Light and rain sensor
Comfort seats with heating and cooling.

( Technologies and EQUIPMENT )

• Main water pumps
• External shower outlet on the right side of the module
• Electric drain valves for gray water tank
• Main water tank volume: 545 L
• Gray water tank volume: 285 L

• 600 Ah/24 V lithium-ion battery bank, expandable to 900 Ah
• 5000 VA inverter/charger
• 1120 Wp solar panels
• 50A DC-DC converter for charging batteries via the engine alternator
• Color control monitor and ability to remotely monitor the system

• Dimmable, LED recessed ceiling lights, controllable via app and switchable in sections
• Dimmable, separately switchable LED light strips under the upper cabinets
• Dimmable reading lights in the sleeping and dining area
• 10 x 230V sockets
• 7 x USB charging ports
• 1 x 24V socket

Scheer Nano diesel-powered liquid heater:

• 7 kW heating output
• Hybrid function – Diesel/electric operation with up to 3 kW output
• Automatic altitude adjustment for optimal use at various elevations
• Blue burner technology – High efficiency and environmentally friendly
• Pressure-resistant stainless steel boiler
• Preheating capability – Utilizes engine heat and preheats the drive section



Heating components:

• Underfloor heating in the living area
• Radiator in the dinette
• Radiator in the bedroom
• Towel radiator in the bathroom
• Radiator in the garage

Maxxair Roof Ventilators:

• 2 highly effective Maxxair roof ventilators in the living area and bathroom
• Air inlet and outlet mode
• Remote controlled
• Air conditioning function
• Rain sensor, closes automatically when it rains
• In-house developed additional insulating hood on the vehicle roof prevents condensation in cold outside temperatures

Bayernluft System:

A Bayernluft Comfort ventilation unit with heat recovery and humidity control is installed in the module. This system ensures the module always has ideal humidity, eliminating the risk of condensation or mold.

• Roof rack
• TV lift system (without television)
• Air conditioning for the living cabin
• Fresh water filling unit with 3 pre-filter levels and UV lamp
• Rear carrier for a spare wheel
• Tire pressure control system
